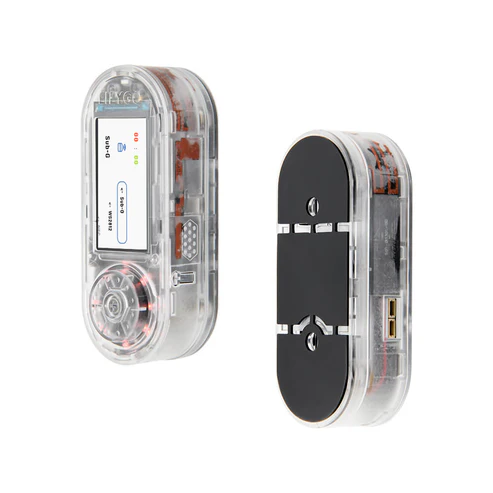

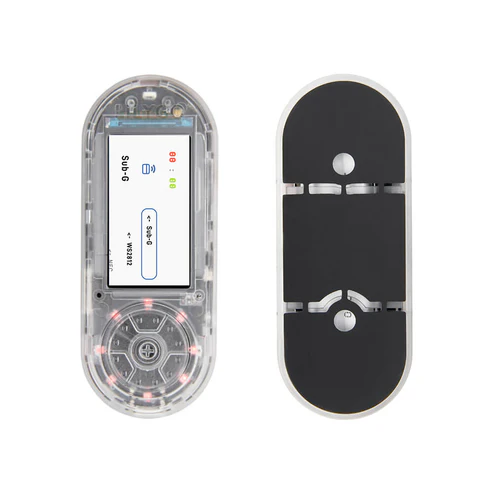

T-Embed CC1101 – Portable RF Hacking & Development Tool

Description

🧰 Product Description:

The T-Embed CC1101 is a powerful and compact development tool that combines an ESP32-S3 microcontroller with the CC1101 Sub-GHz RF module, designed for wireless communication experiments, RF sniffing, signal replay, and penetration testing.

Perfect for cybersecurity researchers, ethical hackers, and IoT developers, this tool allows you to analyze and interact with common RF signals like 433MHz and 868MHz—used in remote controls, gate openers, alarm systems, and more.

🔍 Key Features:

• ✅ ESP32-S3 Dual-core Xtensa LX7 processor with Wi-Fi & Bluetooth 5.0

• ✅ CC1101 RF Transceiver Module – supports 315/433/868/915 MHz

• ✅ 1.9-inch TFT Color Display (170×320 resolution)

• ✅ 6-Button D-Pad Navigation – ideal for handheld operation

• ✅ Built-in 800mAh Rechargeable Battery

• ✅ USB Type-C Port – fast charging and data transfer

• ✅ Compact and Portable – carry it in your pocket

• ✅ Open-source Friendly – Arduino, PlatformIO, MicroPython support

📦 Package Includes:

• 1x T-Embed Main Board (with ESP32-S3)

• 1x CC1101 RF Module (pre-soldered)

• 1x USB Type-C Cable

• 1x External Antenna

• 1x 800mAh Built-in Battery

🛠 Technical Specifications:

⚙️ Common Use Cases:

• 📡 RF Signal Sniffing (433MHz / 868MHz)

• 🔁 Replay Attack Testing for security analysis

• 🚪 Clone / Jam RF Remote Signals (gates, alarms, etc.)

• 🛠 Wireless Penetration Testing

• 🧪 IoT Prototyping & Development

• 🕵️ Research in Ethical Hacking & Red Team Operations

💻 Programming & Support:

• Arduino IDE and PlatformIO supported

• MicroPython development compatible

• Active open-source community support

• Easy-to-use GUI for signal capturing and testing

📢 Why Buy from Us?

✅ Original & Tested Product
✅ Fast Delivery Anywhere in Pakistan
✅ Excellent Technical Support
✅ Ideal for RF Learners, Hackers & Security Researchers
